Configuration inside ossec.conf:

<integration>

<name>custom-viajero_imposible</name>

<rule_id>ID’s-VPN</rule_id>

<alert_format>json</alert_format>

</integration>

Once we have this, we need to paste the following script into /var/ossec/integrations.

SCRIPT:

#!/var/ossec/framework/python/bin/python3

import json
import sys
import time
import os
from socket import socket, AF_UNIX, SOCK_DGRAM
from datetime import datetime
from geopy.distance import geodesic
import requests
import sqlite3

# Global vars
SOCKET_ADDR = ‘/var/ossec/queue/sockets/queue’
BD = ‘/var/ossec/var/db/DB_Imposible_traveller.db’

def main():
try:
sock = socket(AF_UNIX, SOCK_DGRAM)
sock.connect(SOCKET_ADDR)

# Read alerts.json
alert_file = open(sys.argv[1])
alert_json = json.loads(alert_file.read())
alert_file.close()

alert_timestamp = alert_json[‘timestamp’]

#Posibles srcip
posibles_srcip = [‘srcip’, ‘src_ip’, ‘remip’]
for key in alert_json[‘data’]:
if key in posibles_srcip:
alert_srcip = alert_json[‘data’][key]
break

alert_user = alert_json[‘data’][‘dstuser’]

# IP-API info
new_event = query_api(alert_srcip)
coords_new_event = (new_event[3], new_event[4])

# Read database
# Connect to SQLite database
conn = sqlite3.connect(BD)

# Create a cursor object
cursor = conn.cursor()

cursor.execute(”’
SELECT * FROM logs WHERE user = ?
”’, (alert_user,))

user_in_db = cursor.fetchone()

# If user exist in db, check if it possible to travel from point A to B
if user_in_db:
coords_existent_event = (user_in_db[3], user_in_db[4])

if not is_possible_travell(user_in_db[0], alert_timestamp, coords_existent_event, coords_new_event):

# Wazuh alert log

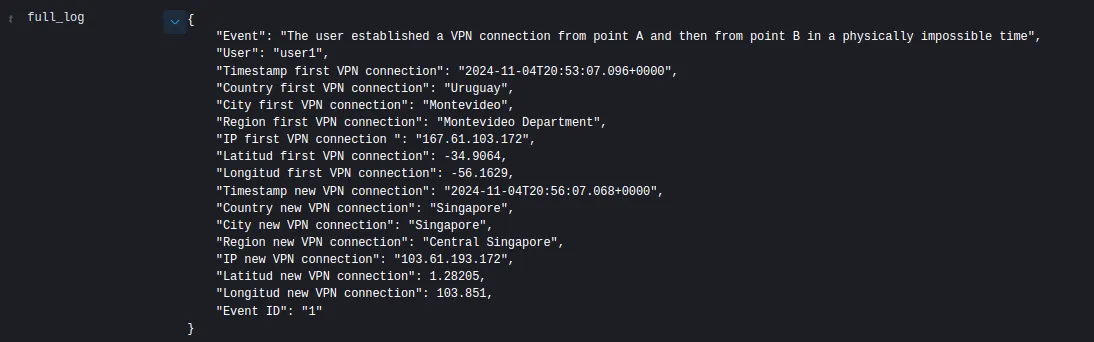

msg = {
“Event”: “The user established a VPN connection from point A and then from point B in a physically impossible time”,
“User”: alert_user,
“Timestamp first VPN connection”: user_in_db[0],
“Country first VPN connection”: user_in_db[5],
“City first VPN connection”: user_in_db[6],
“Region first VPN connection”: user_in_db[7],
“IP first VPN connection “: user_in_db[2],
“Latitud first VPN connection”: user_in_db[3],
“Longitud first VPN connection”: user_in_db[4],
“Timestamp new VPN connection”: alert_timestamp,
“Country new VPN connection”: new_event[0],
“City new VPN connection”: new_event[1],
“Region new VPN connection”: new_event[2],
“IP new VPN connection”: alert_srcip,
“Latitud new VPN connection”: new_event[3],
“Longitud new VPN connection”: new_event[4],
“Event ID”: “1”
}

msg = json.dumps(msg, ensure_ascii=False, indent=4)

send_to_wazuh(sock, msg)

# Case in wich user connects from one country and then from another country but in range of time acceptable, it is interesting to generate an alert and analyze it
elif user_in_db[5] != new_event[0]:

# Wazuh alert log
msg = {
“Event”: “The user established a VPN connection from one country and then from another different country in reasonable times, validate with client”,
“User”: alert_user,
“Timestamp first VPN connection”: user_in_db[0],
“Country first VPN connection”: user_in_db[5],
“City first VPN connection”: user_in_db[6],
“Region first VPN connection”: user_in_db[7],
“IP first VPN connection”: user_in_db[2],
“Latitud first VPN connection”: user_in_db[3],
“Longitud first VPN connection”: user_in_db[4],
“Timestamp new VPN connection”: alert_timestamp,
“County new VPN connection”: new_event[0],
“City new VPN connection”: new_event[1],
“Region new VPN connection”: new_event[2],
“IP new VPN connection”: alert_srcip,
“Latitud new VPN connection”: new_event[3],
“Longitud new VPN connection”: new_event[4],
“Event ID”: “2”
}

msg = json.dumps(msg, ensure_ascii=False, indent=4)

send_to_wazuh(sock, msg)

# Finally, regardless of whether it is possible to travel or not, update the data with the new event.
cursor.execute(”’
UPDATE logs
SET timestamp = ?, srcip = ?, lat = ?, lon = ?, country = ?, city = ?, regionName = ?
WHERE user = ?
”’, (alert_timestamp, alert_srcip, new_event[3], new_event[4], new_event[0], new_event[1], new_event[2], alert_user))

with open(‘/var/ossec/logs/integrations.log’, “a”) as file:
file.write(f’User {alert_user} updated’)

else:

cursor.execute(”’
INSERT INTO logs (timestamp, user, srcip, country, city, regionName, lat, lon)
VALUES (?, ?, ?, ?, ?, ?, ?, ?)
”’, (alert_timestamp, alert_user, alert_srcip, new_event[0], new_event[1], new_event[2], new_event[3], new_event[4]))

with open(‘/var/ossec/logs/integrations.log’, “a”) as file:
file.write(f’User {alert_user} added to database’)

# Save the changes made to the database and close the connection
conn.commit()
conn.close()

except Exception as e:
with open(‘/var/ossec/logs/integrations.log’, “a”) as file:
file.write(str(e))
finally:
sock.close()

def send_to_wazuh(sock, msg):
string = f’1:Imposible_traveler_VPN:{msg}‘
sock.send(string.encode())

with open(‘/var/ossec/logs/integrations.log’, “a”) as file:
file.write(f’Alerta enviada a Wazuh {string}‘)

# Function to calculate if it is possible to travel between two places with the given time
def is_possible_travell(tiempo_a, tiempo_b, coords_a, coords_b):
# Calculate distance between points A and B using geopy (geodesic)
distance = geodesic(coords_a, coords_b).kilometers

# Calculate the time difference in hours
fmt = “%Y-%m-%dT%H:%M:%S.%f%z” # Date and time format
time_a_dt = datetime.strptime(tiempo_a, fmt)
time_b_dt = datetime.strptime(tiempo_b, fmt)
delta_time = abs((time_b_dt – time_a_dt).total_seconds() / 3600) # Convert hours to seconds

velocity = 800 # Average airplane speed in km/h

# Calculate the time required to travel the distance at the given speed
time_necessary = distance / velocity

# Check if the trip is possible
return delta_time >= time_necessary

def query_api(ip):
url = f’http://ip-api.com/json/{ip}?fields=country,regionName,city,lat,lon,query’
response = requests.get(url)

if response.status_code == 200:
data = response.json()
return data[‘country’], data[‘city’], data[‘regionName’], data[‘lat’], data[‘lon’]
else:
return None

if __name__ == “__main__”:
main()
